Complete Lineup for Use in High-temperature,
High-pressure Environments or Where
Exposed to Chemicals
| Model | BF-1 | BF-3(R) *1 | BF-5(R) *1 | BS-1 | BS-1T |
|---|---|---|---|---|---|
| No. of Electrodes | 1 | 3 | 5 | — | — |
| Insulator material | PPS resin (Metallic section is SUS.) | Fluorocarbon polymer (PFA) | |||
| Insulation resistance | 100 MΩ | ||||
| Operating temperature | Electrode section: -10 to 150°C (with no icing) Terminal section: -10 to 70°C (with no icing or condensation) | 250°C max. | 180°C max. | ||
| Operating pressure | Atmospheric pressure | 1.96 MPa *2 | 981 kPa *2 | ||
| Applications | Liquids with low specific resistance, such as wastewater and cloudy water | General applications for purified water and wastewater | Boiler water level detection or high- temperature tanks | Acid or alkaline solution level detection | |
Data Sheet

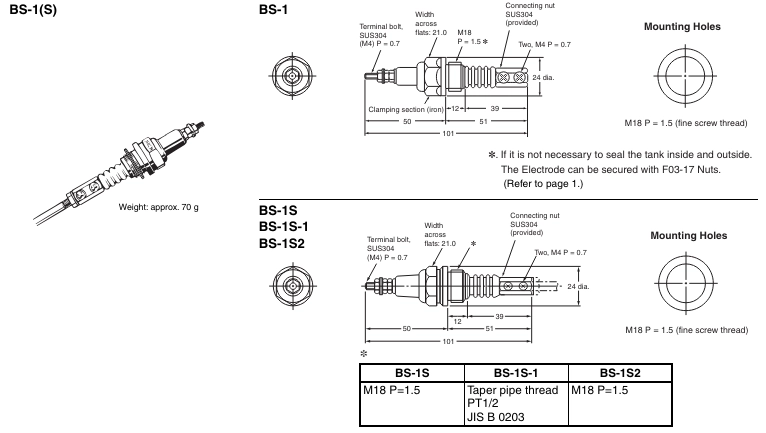

BS-1 Series
BS-1 Series
2 MB
