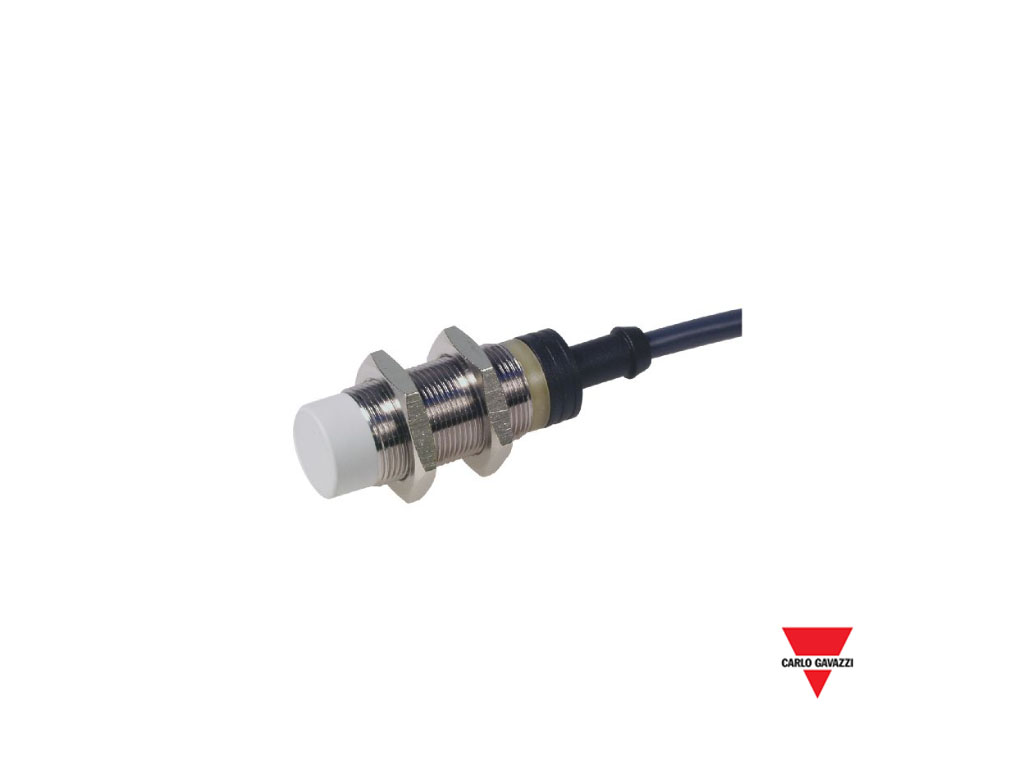

Proximity Sensors Inductive
Nickel-Plated Brass Housing
Types IA, M12, M18 and M30
• Sensing distance: 2 to15 mm
• Flush and non-flush types
• Long and short body
• Rated operational voltage: 10 – 40 VDC
• Output: DC 200 mA, NPN or PNP
• Make and break switching function
• LED-indication
• Protection: reverse polarity, short circuit, transients
• Cable and plug versions
Specification
| Product Attribute | Attribute Value |
| Sensor Type | Inductive |
| Sensing Distance | 0.551″ (14mm) |
| Output Type | NPN-NC, 2-Wire |
| Response Frequency | 400Hz |
| Shielding | Unshielded |
| Material – Body | Nickel-Plated Brass |
| Voltage – Supply | 12V ~ 36V |
| Termination Style | Cable Leads |
| Operating Temperature | -25°C ~ 70°C |
| Ingress Protection | IP67, NEMA 1,3,4,6,13 |
| Indicator | LED |
| Package / Case | Cylinder, Threaded – M18 |
