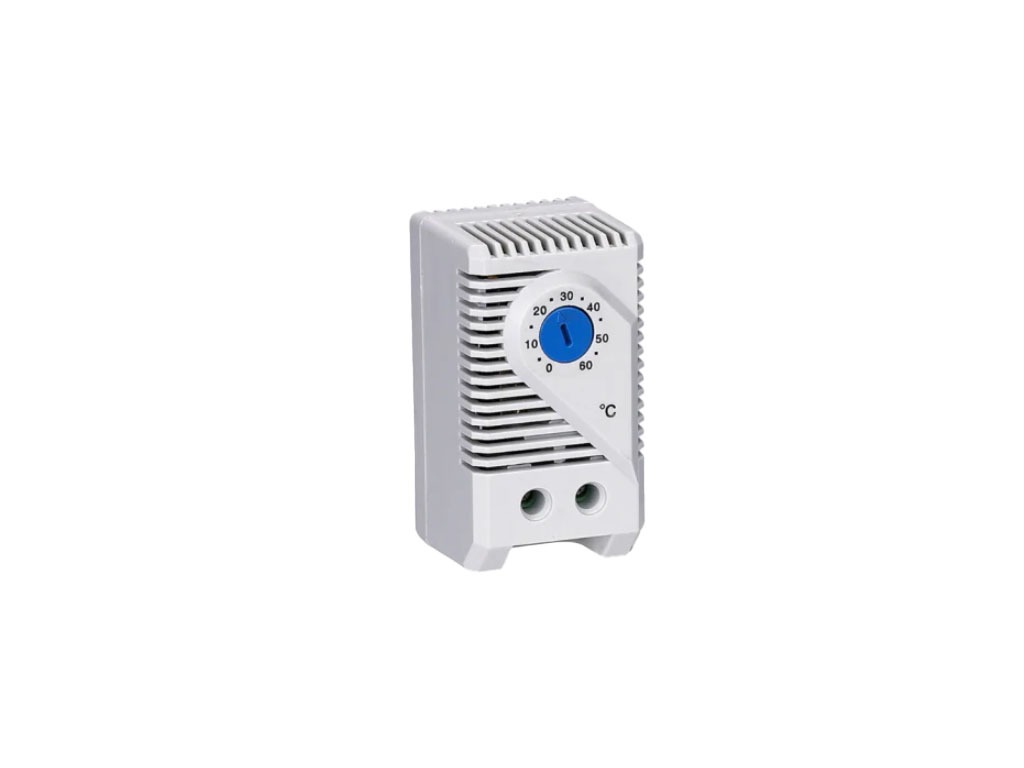

KTO 011/KTS 011 Small Compact Thermostat & Mini Thermostat
| Switch temperature difference |        7K (± 4K tolerance) |
| Sensor element | Â Â thermostatic bimetal |
| Contact type | Â Â snap-action contact |
| Contact resistance | < 10mOhm |
| Service life | > 100 000 cycles |
| Max. switching capacity | 250VAC, 10 (2) A |
| 120VAC, 15 (2) A | |
| DC 30W | |
| EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm⊃2;, stranded wire (with wire end ferrule) 1.5mm⊃2; |
| Mounting | clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series) |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 60 x 33 x 43mm |
| Weight | approx. 40g |
| Fitting position | variable |
| Operating/Storage temperature | -20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F) |
| Protection type | IP20 |
